Detailed introduction
Product features

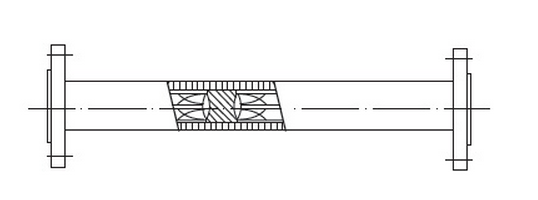

Huakai SH mixerUnit is composed of double channel, the pore screw placement, adjacent unit azimuth misalignment of the double channel 90 °, the room is equipped with fluid redistribution between units. Technical characteristic is: the highest degree of dispersion of: 1-2 mm, not uniformity of liquid - liquid phase is: SX 1 ~ 5% or less. Suitable for fine processing, plastics, synthetic fiber, mining and metallurgy and other departments of mixing, emulsifying, color matching, injection molding, spinning and heat transfer process, such as the small flow, mixed demanding high viscosity (106 centipoise or less) is particularly suitable for cleaning medium.
Application field
Suitable for chemical, plastics, synthetic fiber, mining and metallurgy industries such as fluid mixing, emulsifying, color matching, injection molding, spinning, the heat transfer process, such as the small flow rate, mixture of high viscosity centipoise or less demanding is particularly suitable for cleaning medium.
note：If you need take the mouth, jacket and the rubber lining, please call instructions before order, thank you!
Huakai SH mixerUnit is composed of double channel, the pore screw placement, adjacent unit azimuth misalignment of the double channel 90 °, the room is equipped with fluid redistribution between units. Technical characteristic is: the highest degree of dispersion of: 1-2 mm, not uniformity of liquid - liquid phase is: SX 1 ~ 5% or less. Suitable for fine processing, plastics, synthetic fiber, mining and metallurgy and other departments of mixing, emulsifying, color matching, injection molding, spinning and heat transfer process, such as the small flow, mixed demanding high viscosity (106 centipoise or less) is particularly suitable for cleaning medium.
Product model
| specifications | Dn | dh | Q | specifications | Dn | dh | Q | |
| SH-3/15 | 15 | 3 | 0.1-0.2 | SH-19/80 | 80 | 19 | 4.0-8.0 | |
| SH-4.5/20 | 20 | 4.5 | 0.2-0.4 | SH-24/100 | 100 | 24 | 6.5-13.0 | |
| SH-5/25 | 25 | 5 | 0.5-1.1 | SH-36/150 | 150 | 36 | 31-63 | |
| SH-7/32 | 32 | 7 | 0.9-1.6 | SH-49/200 | 200 | 49 | 54-108 | |
| SH-9/40 | 40 | 9 | 1.6-3.2 | SH-74/300 | 300 | 74 | 124-248 | |
| SH-12/50 | 50 | 12 | 2.3-4.6 | SH-124/500 | 500 | 124 | 174-348 |
Suitable for chemical, plastics, synthetic fiber, mining and metallurgy industries such as fluid mixing, emulsifying, color matching, injection molding, spinning, the heat transfer process, such as the small flow rate, mixture of high viscosity centipoise or less demanding is particularly suitable for cleaning medium.
note：If you need take the mouth, jacket and the rubber lining, please call instructions before order, thank you!
