Pipe filter

您当前的位置:首页 > 产品中心 > Pipe filter

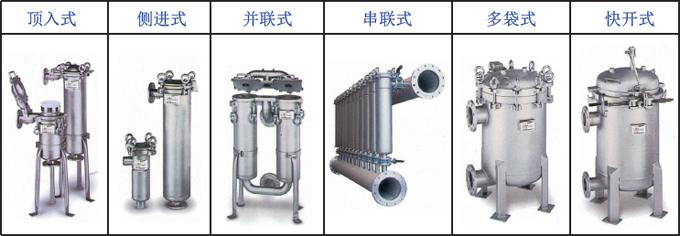

Bag filter


Detailed introduction

Bag filter structure
     \
Main performance
Filter bag sliding sideways probability is small, effectively guarantee the quality of filter.
Filter bag filtration precision, has now been achieved0.5μm。
Bag filter large quantity, small volume, large amount of sludge.
After cleaning the filter bag can be repeated use, cost savings.
Bag filter application range, flexible use, installation and varied.
Bag filter carry greater work pressure, pressure loss of the filter is small, low operating cost, energy saving effect is obvious.
Based on the working principle and structure of bag filter system, convenient and quick replacing filter bag, and filter cleaning, save work time.

Design and manufacturing standards
May refer toHG21637-91、GB150-2010Design, manufacture and acceptance.
Shell material
Bag filter can according to customer's site condition, chooses the most economic and practical material collocation of diversification. Selection of material has the following kinds:Q235B、Q345R、16MnR、304、304L、316、316L。
Application field
Widely used in chemical industry, pharmacy, beer, water treatment, petroleum, environmental protection, biological engineering, fine food, paint and other industries.
Standard bag filter
\Standard single bag filter
★ Standard bag interface, installation form of diversification
★ Quick opening eyebolt, convenient and quick opening and closing
★ Choose appropriate filter bag according to the flow
★ Can be adjusted according to the field for quick installation size
★ Health level polishing can meet customer demanding requirements

Technical parameters
referenceHG21637-91、GB150-2011Design, manufacture and acceptance
The flange standard:HG GB SH HGJ JB ANSI JIS
Interface form: screw, clamp, flange\
Diameter specifications:1-1/2”
Outlet specifications:1/4”
Filter bag type:1# 、2#
Filtration precision:0.5um-800um
Design pressure:1.6MPa
Design temperature:120℃
Surface treatment: inside and outside shell sand blasting or polishing
Sealing gasket: silicone, nitrile butadiene rubber, four fluorine rubber
Filter bag material: polyester, polypropylene, nylon, ptfe, glass fiber

Application field
1. Petroleum and chemical industry, oil and various kinds of oil, viscose, chemical fiber manufacturing process all kinds of filter solution.
2. Oil and gas industry: amine fluid desulfurization, flux filtration dehydration, oil field water injection, completion fluid filtration.
3. Textile, printing and dyeing, paper making industry: dope, dye, flux, water filter, additives, adhesives.
4. Edible oil and soap industry: edible oil polishing purification, soap raw materials and water filtration.
5. Pharmaceutical industry: all kinds of pharmaceutical intermediates, pharmaceutical raw materials, solvents filtering.
6. Electroplating and electronics industry: all kinds of plating solution and water filtration.
7. Mechanical processing industry: all kinds of cutting fluids, cooling fluid and fluid filtration
8. Car coating, paint, paint industry, latex paint, electrophoretic paint, pretreatment liquid, paint, paint raw material and solvent filtration.
9. Food and beverage industry, beer, wine, fruit wine, wine, white wine, rice wine, fruit juices, bottled water, tea drinks, soymilk, syrup, dairy products, food additives, such as clarification processing and CIP water filtration.
